Pepijn 5adad11128 feat(sim): VLABench benchmark integration (#3396)
feat(sim): add VLABench benchmark integration
Add VLABench as a new simulation benchmark in LeRobot, following the existing LIBERO and MetaWorld patterns.
This PR wires VLABench end-to-end across environment integration, Docker setup, CI smoke evaluation, and documentation. It also fixes a number of upstream packaging and runtime issues required to make VLABench usable and reproducible in CI.
What’s included
Benchmark integration
Add VLABench as a new simulation benchmark.
Expose supported VLABench tasks through the LeRobot env interface.
Follow the established LIBERO / MetaWorld factory patterns.
Preserve lazy async-env metadata so env.unwrapped.metadata["render_fps"] continues to work.
CI smoke evaluation
Add a VLABench smoke-eval job using lerobot/smolvla_vlabench.
Use the correct rename_map for the 3-camera dataset layout.
Expand smoke coverage from 1 to 10 primitive tasks.
Extract task descriptions after eval so metrics artifacts include per-task labels.
Skip Docker Hub login when secrets are unavailable (e.g. fork PRs).
Docker / install fixes
Install VLABench from GitHub rather than PyPI.
Use uv pip, not pip, in the base image.
Fail loudly on install errors instead of masking them.
Clone VLABench into the non-root user’s home directory.
Use shallow editable installs for VLABench and rrt-algorithms to work around missing __init__.py issues.
Pin upstream clones to exact commit SHAs for reproducibility.
Add undeclared runtime dependencies required by VLABench (open3d, colorlog, scikit-learn, openai).
Unpin open3d so Python 3.12 wheels resolve.
Assets
Support downloading VLABench assets from a Hugging Face Hub mirror via VLABENCH_ASSETS_REPO.
Keep Google Drive download support as fallback.
Install huggingface_hub[hf_xet] so Xet-backed assets download correctly.
Validate required mesh/XML asset subtrees at build time.
Patch VLABench constants to tolerate missing asset directories at import time.
Runtime / env correctness
Import VLABench robots and tasks explicitly so decorator-based registry population happens.
Resize and normalize camera observations so they always match the declared (H, W, 3) uint8 observation space.
Reinstall LeRobot editably inside the image so the new env code is actually used.
Coerce agent_pos / ee_state to the expected shape.
Pad actions when needed to match data.ctrl.
Replace zero-padding fallback with proper dm_control IK for 7D end-effector actions.
Refetch dm_control physics on each step instead of caching weakrefs.
Retry unstable resets with reseeding and handle PhysicsError gracefully at step time.
Dataset / policy alignment
Align VLABench observations and actions with Hugging Face dataset conventions used by lerobot/vlabench_unified:
convert EE position between world frame and robot-base frame at the env boundary,
expose / consume Euler XYZ instead of raw quaternion layout,
align gripper semantics with dataset convention (1 = open, 0 = closed).
This fixes policy/env mismatches that previously caused incorrect IK targets and unstable behavior at evaluation time.
Docs
Add a full docs/source/vlabench.mdx page aligned with the standard benchmark template.
Document task selection forms (single task, comma list, suite shortcut).
Document installation, evaluation, training, and result reproduction.
Point examples at lerobot/smolvla_vlabench.
Add a benchmark banner image.
Remove outdated / misleading references to upstream evaluation tracks.
Document manual install flow instead of a broken vlabench extra.
Packaging cleanup
Remove the unresolvable vlabench extra from pyproject.toml.
Remove the no-op VLABench processor step.
Remove the obsolete env unit test that only covered the dropped gripper remap helper.
Apply formatting / logging / style cleanup from review feedback.
Why this is needed
VLABench is not currently consumable as a normal Python dependency and requires several upstream workarounds:
no PyPI release,
missing package declarations,
undeclared runtime deps,
SSH-only submodule references,
asset downloads outside normal package install flow,
registry population that depends on import side effects,
env outputs that do not always match declared observation shapes,
task resets that can diverge under some random layouts.
This PR makes the benchmark usable in LeRobot despite those constraints, and ensures CI runs are reproducible and informative.
If you want a much shorter squash commit message, I’d use this:
feat(sim): integrate VLABench benchmark with CI, Docker, and docs
Add VLABench as a new LeRobot simulation benchmark, following the existing LIBERO / MetaWorld patterns.
This includes:
LeRobot env integration and task exposure,
CI smoke eval with lerobot/smolvla_vlabench,
Docker install and asset-download fixes,
runtime fixes for registry loading, assets, camera obs, action handling, dm_control IK, and PhysicsError recovery,
alignment of obs/action semantics with HF VLABench datasets,
docs and packaging cleanup.
The PR also incorporates review feedback, improves reproducibility by pinning upstream commits, and makes VLABench usable in CI despite upstream packaging and asset-management issues.
2026-04-21 17:54:11 +02:00
2025-03-13 14:05:55 +01:00
2025-06-05 17:48:43 +02:00
2026-04-06 12:23:37 +02:00
2026-02-28 14:41:28 +01:00
2024-03-25 12:28:07 +01:00
2025-10-14 17:21:18 +02:00
2026-01-16 14:38:42 +01:00

LeRobot, Hugging Face Robotics Library

Tests Tests Python versions License Status Version Contributor Covenant Discord

LeRobot aims to provide models, datasets, and tools for real-world robotics in PyTorch. The goal is to lower the barrier to entry so that everyone can contribute to and benefit from shared datasets and pretrained models.

🤗 A hardware-agnostic, Python-native interface that standardizes control across diverse platforms, from low-cost arms (SO-100) to humanoids.

🤗 A standardized, scalable LeRobotDataset format (Parquet + MP4 or images) hosted on the Hugging Face Hub, enabling efficient storage, streaming and visualization of massive robotic datasets.

🤗 State-of-the-art policies that have been shown to transfer to the real-world ready for training and deployment.

🤗 Comprehensive support for the open-source ecosystem to democratize physical AI.

Quick Start

LeRobot can be installed directly from PyPI.

pip install lerobot
lerobot-info

Important

For detailed installation guide, please see the Installation Documentation.

Robots & Control

Reachy 2 Demo

LeRobot provides a unified Robot class interface that decouples control logic from hardware specifics. It supports a wide range of robots and teleoperation devices.

from lerobot.robots.myrobot import MyRobot

# Connect to a robot
robot = MyRobot(config=...)
robot.connect()

# Read observation and send action
obs = robot.get_observation()
action = model.select_action(obs)
robot.send_action(action)

Supported Hardware: SO100, LeKiwi, Koch, HopeJR, OMX, EarthRover, Reachy2, Gamepads, Keyboards, Phones, OpenARM, Unitree G1.

While these devices are natively integrated into the LeRobot codebase, the library is designed to be extensible. You can easily implement the Robot interface to utilize LeRobot's data collection, training, and visualization tools for your own custom robot.

For detailed hardware setup guides, see the Hardware Documentation.

LeRobot Dataset

To solve the data fragmentation problem in robotics, we utilize the LeRobotDataset format.

  • Structure: Synchronized MP4 videos (or images) for vision and Parquet files for state/action data.
  • HF Hub Integration: Explore thousands of robotics datasets on the Hugging Face Hub.
  • Tools: Seamlessly delete episodes, split by indices/fractions, add/remove features, and merge multiple datasets.
from lerobot.datasets.lerobot_dataset import LeRobotDataset

# Load a dataset from the Hub
dataset = LeRobotDataset("lerobot/aloha_mobile_cabinet")

# Access data (automatically handles video decoding)
episode_index=0
print(f"{dataset[episode_index]['action'].shape=}\n")

Learn more about it in the LeRobotDataset Documentation

SoTA Models

LeRobot implements state-of-the-art policies in pure PyTorch, covering Imitation Learning, Reinforcement Learning, and Vision-Language-Action (VLA) models, with more coming soon. It also provides you with the tools to instrument and inspect your training process.

Gr00t Architecture

Training a policy is as simple as running a script configuration:

lerobot-train \
  --policy=act \
  --dataset.repo_id=lerobot/aloha_mobile_cabinet
Category Models
Imitation Learning ACT, Diffusion, VQ-BeT, Multitask DiT Policy
Reinforcement Learning HIL-SERL, TDMPC & QC-FQL (coming soon)
VLAs Models Pi0Fast, Pi0.5, GR00T N1.5, SmolVLA, XVLA

Similarly to the hardware, you can easily implement your own policy & leverage LeRobot's data collection, training, and visualization tools, and share your model to the HF Hub

For detailed policy setup guides, see the Policy Documentation.

Inference & Evaluation

Evaluate your policies in simulation or on real hardware using the unified evaluation script. LeRobot supports standard benchmarks like LIBERO, MetaWorld and more to come.

# Evaluate a policy on the LIBERO benchmark
lerobot-eval \
  --policy.path=lerobot/pi0_libero_finetuned \
  --env.type=libero \
  --env.task=libero_object \
  --eval.n_episodes=10

Learn how to implement your own simulation environment or benchmark and distribute it from the HF Hub by following the EnvHub Documentation

Resources

Citation

If you use LeRobot in your project, please cite the GitHub repository to acknowledge the ongoing development and contributors:

@misc{cadene2024lerobot,
    author = {Cadene, Remi and Alibert, Simon and Soare, Alexander and Gallouedec, Quentin and Zouitine, Adil and Palma, Steven and Kooijmans, Pepijn and Aractingi, Michel and Shukor, Mustafa and Aubakirova, Dana and Russi, Martino and Capuano, Francesco and Pascal, Caroline and Choghari, Jade and Moss, Jess and Wolf, Thomas},
    title = {LeRobot: State-of-the-art Machine Learning for Real-World Robotics in Pytorch},
    howpublished = "\url{https://github.com/huggingface/lerobot}",
    year = {2024}
}

If you are referencing our research or the academic paper, please also cite our ICLR publication:

ICLR 2026 Paper
@inproceedings{cadenelerobot,
  title={LeRobot: An Open-Source Library for End-to-End Robot Learning},
  author={Cadene, Remi and Alibert, Simon and Capuano, Francesco and Aractingi, Michel and Zouitine, Adil and Kooijmans, Pepijn and Choghari, Jade and Russi, Martino and Pascal, Caroline and Palma, Steven and Shukor, Mustafa and Moss, Jess and Soare, Alexander and Aubakirova, Dana and Lhoest, Quentin and Gallou\'edec, Quentin and Wolf, Thomas},
  booktitle={The Fourteenth International Conference on Learning Representations},
  year={2026},
  url={https://arxiv.org/abs/2602.22818}
}

Contribute

We welcome contributions from everyone in the community! To get started, please read our CONTRIBUTING.md guide. Whether you're adding a new feature, improving documentation, or fixing a bug, your help and feedback are invaluable. We're incredibly excited about the future of open-source robotics and can't wait to work with you on what's next—thank you for your support!

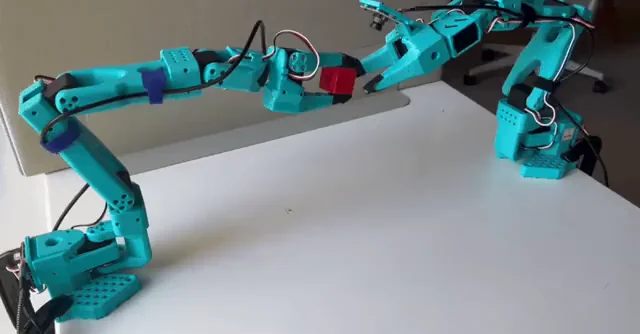

SO101 Video

Built by the LeRobot team at Hugging Face with ❤️
